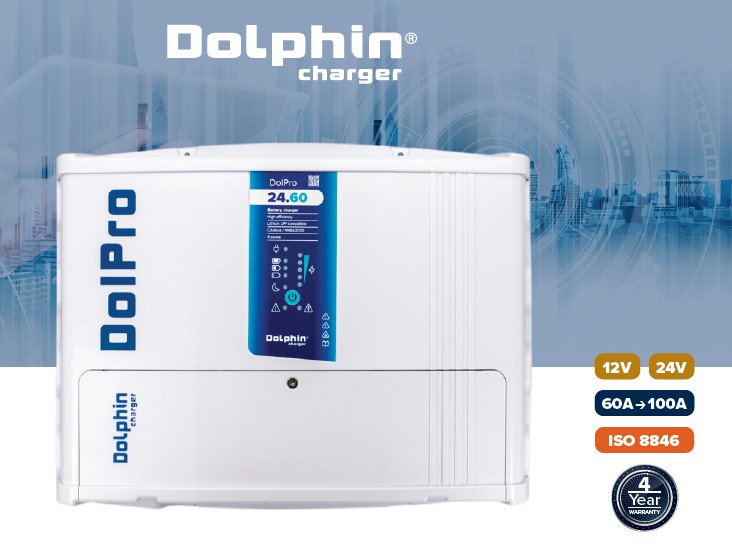

Dolphin Pro Evo3 battery charger 4 out 24V 40A 115/230V

24V 40A

• Input Voltage: 115/230V (±15%)
• Frequency: 50/60 Hz
• Power factor Cos : > 0.95
• Efficiency: 92%
• Max. Consumption: 1300 VA
• Derating @115V: No
• Fuse (Glass type): T20A

Output

• Number of Outputs: 4 isolated (Full power)
• Charging Profiles: Open lead acid, Sealed lead acid, Lead calcium, Spiral cell AGM, Winterizing, Odyssey Marine, GEL, Power supply, LiFePO4+ BMS, LiFePO4+2 BMS
• Charge Profile Selection: Rotary switch 10 positions
• Charging Algorithm: I.Uo.U
• Temperature Compensation: +/−2.5 mV / °C (Ext temp sensor supplied)
• Max. Amp (±5%): 40A
• Battery Capacity: 200 ÷  400 Ah
• Fuse (Auto Min): 3F25A

Protections

• Output current limited, Output short circuit, Overload output voltage, Reverse polarity, Over temperature

General

• Display: LED Panel (State of charge, Power, Alarms)
• Operating Temperature: -10°C to +55°C (Full power till +50°C)
• Storage Temperature: -20°C to +70°C
• Humidity: 10% to 95% (without condensation)
• Convection: Force fan adjustable speed cooling
• Mounting: Wall mounted 4 × M4 Screws
• On/Off Operation: Front Push button or dry contact NO
• Input Alarm: Dry contact NO
• Output Alarm Contact: x2 0.5A 30V NO
• Battery Temp Sensor: External sensor
• CAN Bus: x2 Micro-Fit 3.0
• Communication Standard: Navicolor by Scheiber, NMEA 2000

Standards

• Safety: EN 60335-1 / EN60335-2-29
• Mechanical & Environment : IEC 60068-2-30/1/52 (climatic, salt spray)
• EMC Compliance: EMC 2014/30/EU Directive
• Ignition Protection: No
• Part Number: 399474

Enclosure

• Material & Colour: Polycarbonate white
• Dimensions (H x W x D): 284 × 360 × 122 mm (11.2 × 14.2 × 4.8 in)
• Weight: 3.5 kg (8 lbs)
• Ingress Protection: IP22
• AC Connection: WAGO WINSTA Type 770-813 connector
• DC Terminal: 4M8 Terminals
