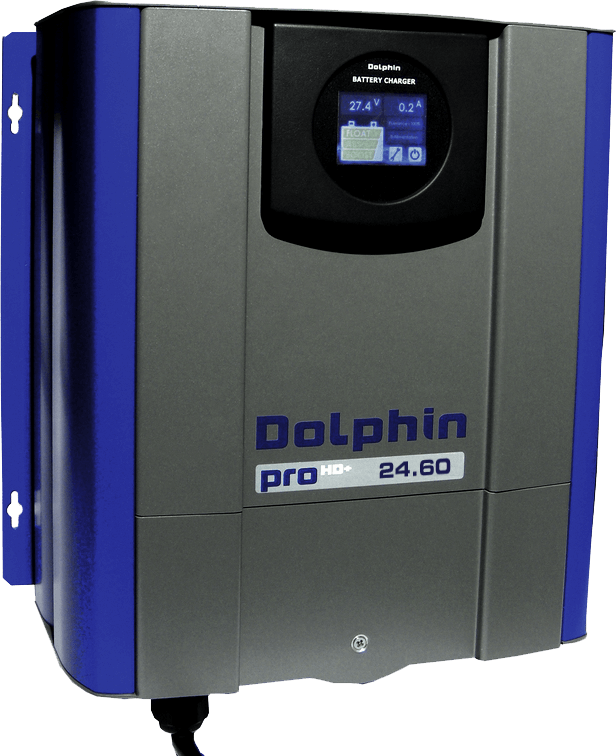

The Dolphin PRO HD+ charger range is designed for professional applications requiring a product recognized and certified by an internationally renowned certification body. The range includes 2 ratings in 24 volts with 60 amp and 100 amp power.
Input Voltage 115V/230V (+/-15%) Automatic Switchover Frequency 50Hz / 60Hz (+/-10%) Cos 0.9 typ Efficiency 0.85 Max. Current 115V/230V 12A/9A Fuse (5x20mm) T20A Outputs 3 isolated outputs Charging curves 9 programs, position selected by dip switch Charging curve IUUo 3 modes Voltage share +/-2% Ripple < 1% Fuse (automatic mini) 3 x F30A Display Touch screen control panel Operating Temperature -10°C to +65°C Operating Humidity 10% to 95% (without condensation) Ventilation Forced fan adjustable speed cooling Security EN60335-29-2 EMC Emission EN55014-1 Housing Powder coated aluminium and composite materials (LED display) Mounting Wall mounted 4 x M4 screws Dimensions 346 x 358 x 128 mm Weight 6 Kg DC connection 4 M8 terminals Battery terminal 2 pins max 10mm² terminal, M6 bolt for groung Output alarm contact 1A 30V NO Battery temp. sensor 2 pins terminal 1,5 mm² max CAN bus connection RJ11
Get in touch with the team to learn more or request a quote about the Dolphin Pro HD+ Battery Charger 24V 60A Three Outputs 115/230VAC.
