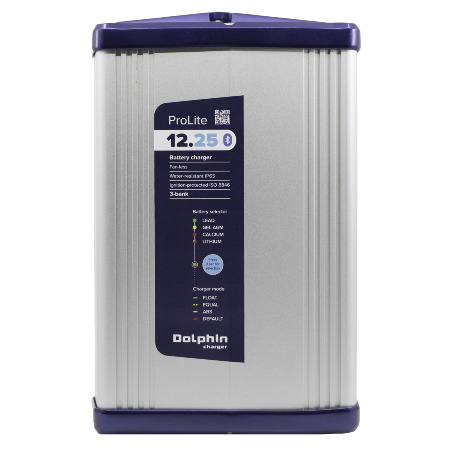

You always wanted a smart, silent, compact and waterproof charger. Here is the best on the market. In 2019 (Q4), Dolphin charger introduces PROLITE, a brand-new series of supercompact, fan-less, water-resistant (IP65) and ignition-protected (ISO 8846)
Input Voltage 230V (+/-10%) Frequency 50 / 60Hz (+/-10%) Cos > 0.5 typ Efficiency > 90% Max. Current 2A Outputs 2 isolated outputs Charging curves Open lead acid / Lead calcium /AGM-GEL / LifeSo4 + BMS Charging curve 3 stages I.Uo.U Voltage share +/-2% Max. Current 15 Amp (+/-5%) Ripple < 1% (BW < 20MHz) Display Tri-colour LED display Control Front push-button switch or via Dolphin Connect App Operating Temperature -10°C to +55°C (automatic derating) Operating Humidity 10% to 90% IP IP65 Ventilation Natural convection Safety EN 60335-1, EN 60335-2-29, ISO 8846, SAEJ1171, UL1236 EMC EN 55014-1, EN55014-2 Housing Anodized extruded aluminium Mounting Wall-mounted 2 x M4 Screws Dimensions 142 x 72 x 194 mm Weight 1.4 Kg AC & DC Cord length 1.8 meter AC Connection 3-wire 0,75mm² stripped cable DC Terminal Pre-wired M8 Ring Terminals
Get in touch with the team to learn more or request a quote about the Dolphin Pro-Lite 12V 15A IP65 Two Outputs 230VAC.
